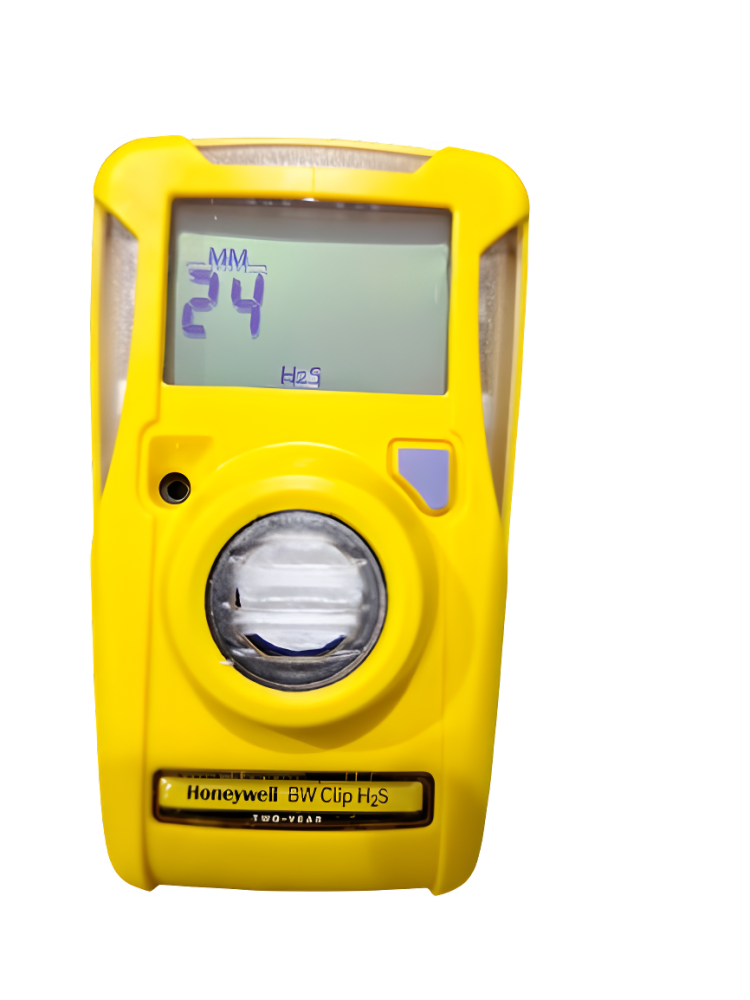

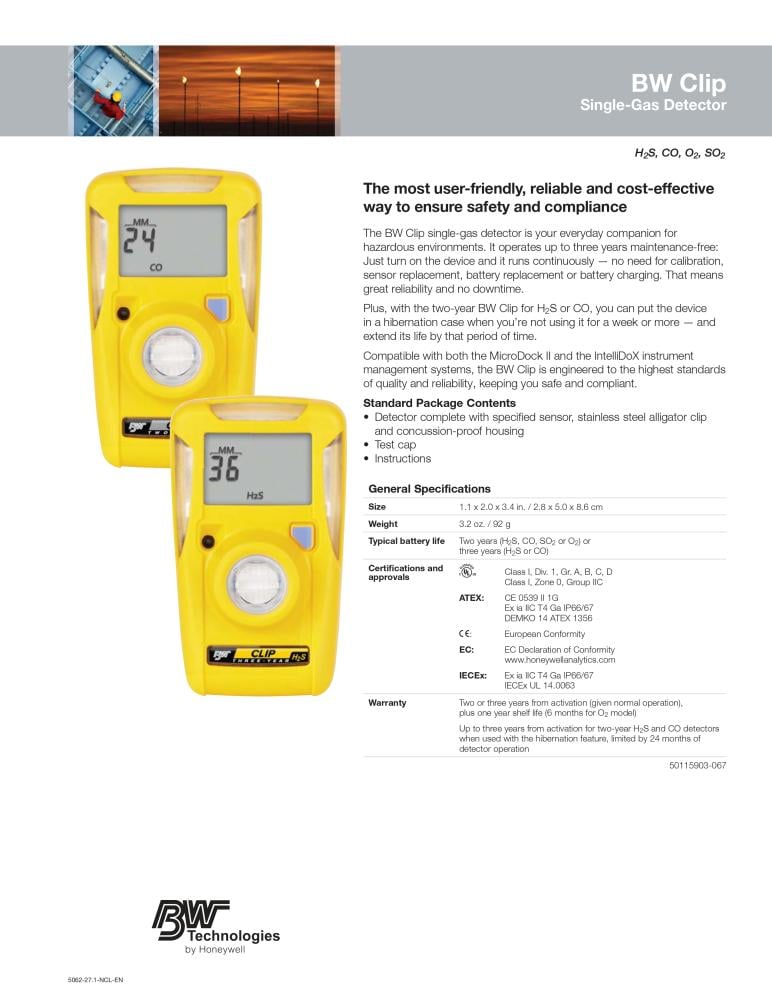

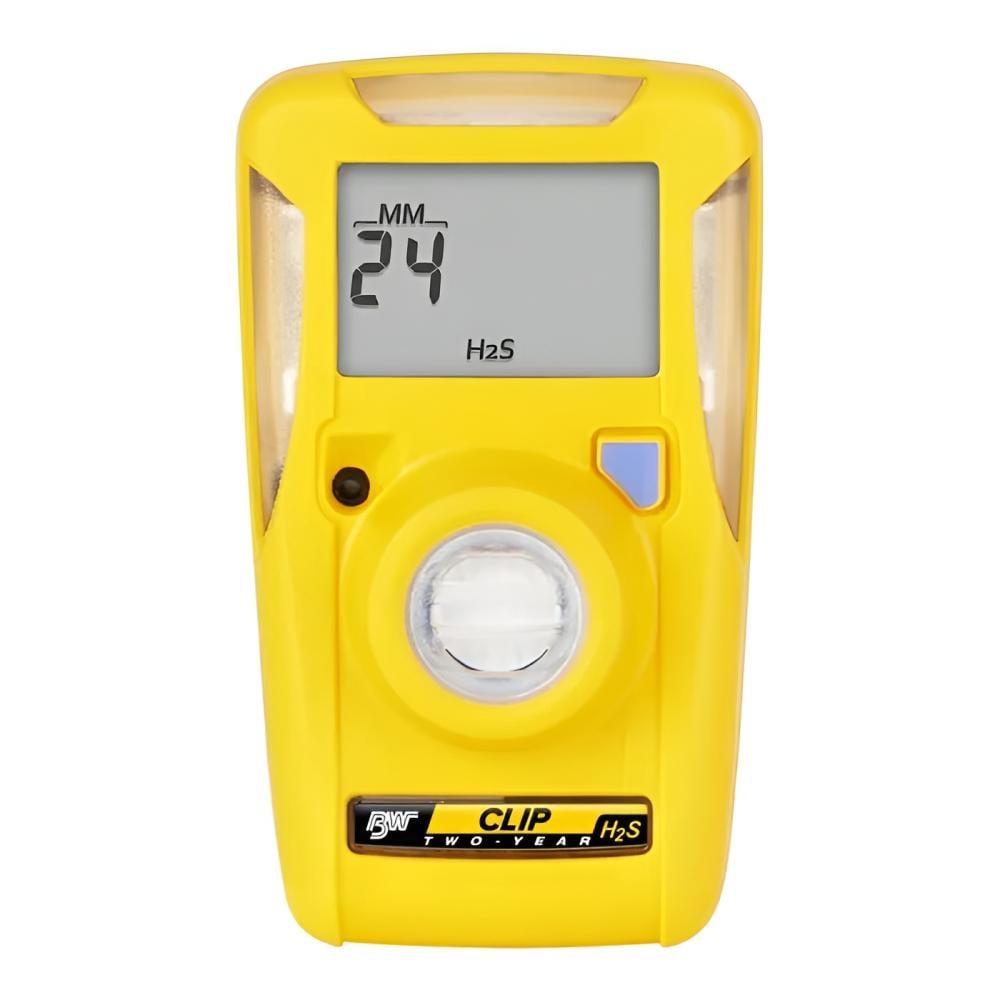

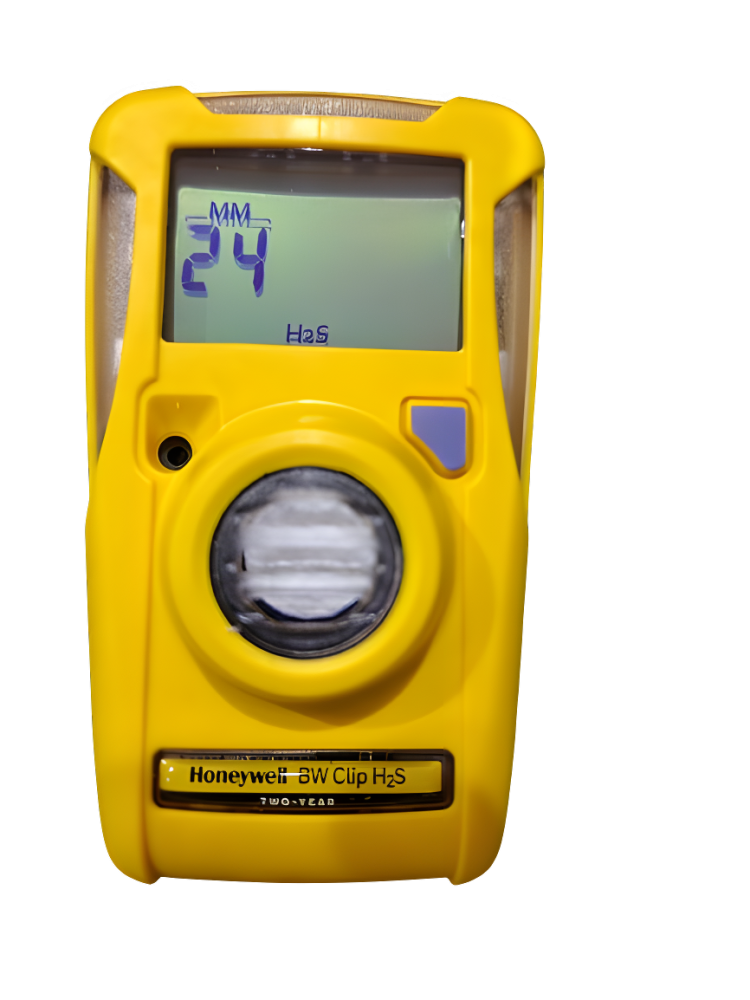

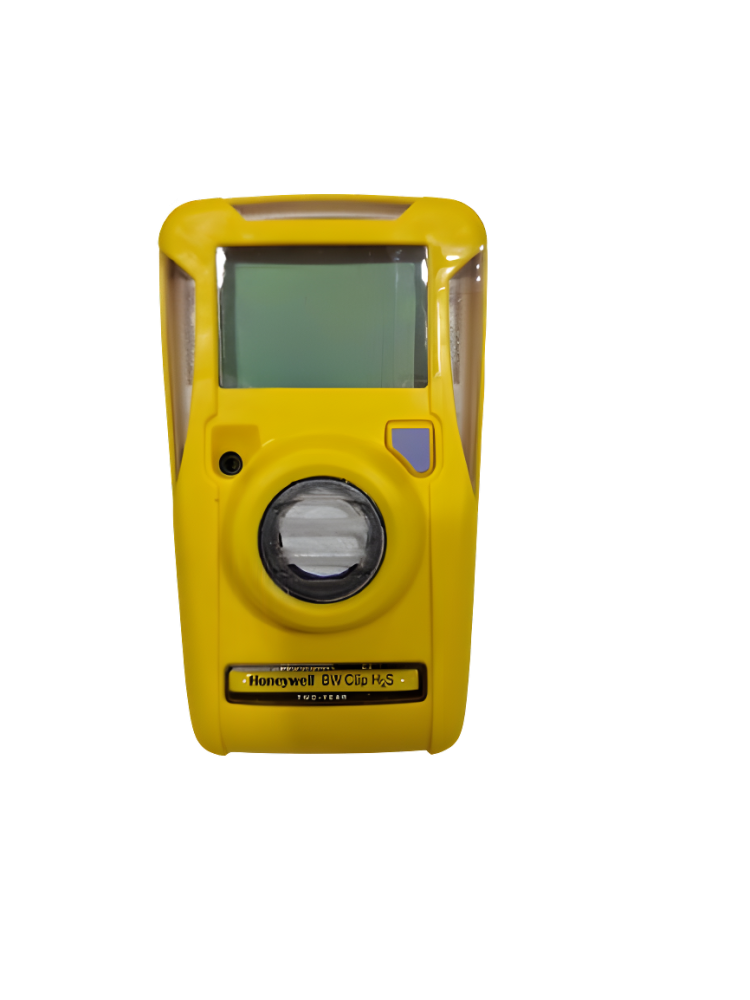

BW Clip Single-Gas Detector
The most user-friendly, reliable and cost-effective way to ensure safety and compliance

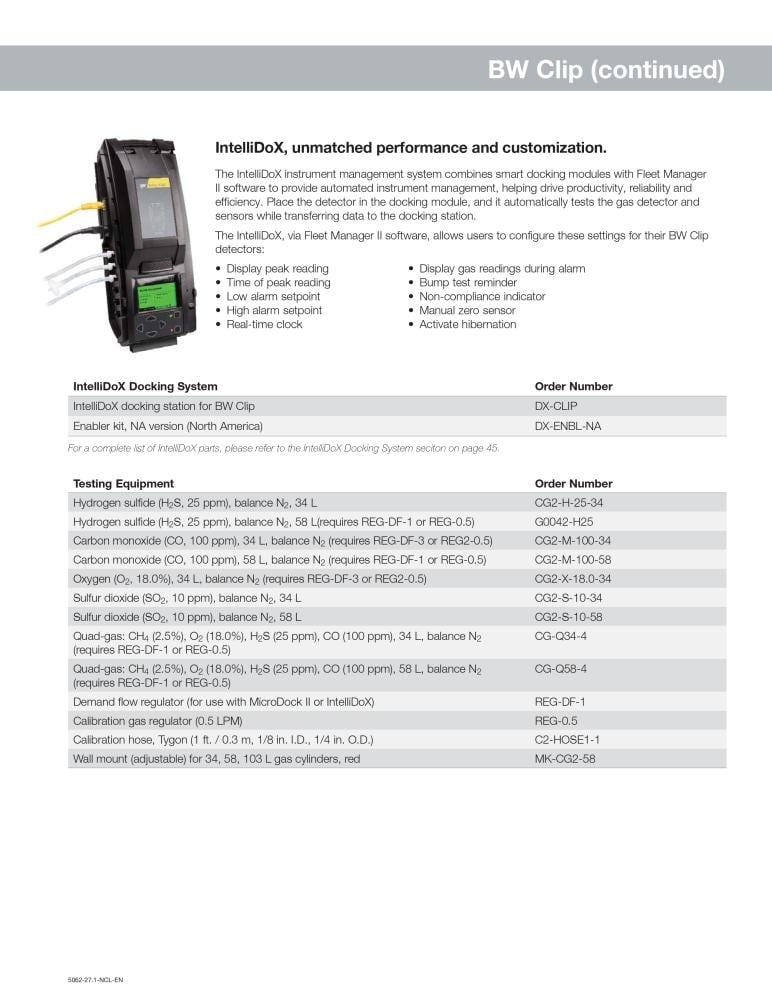

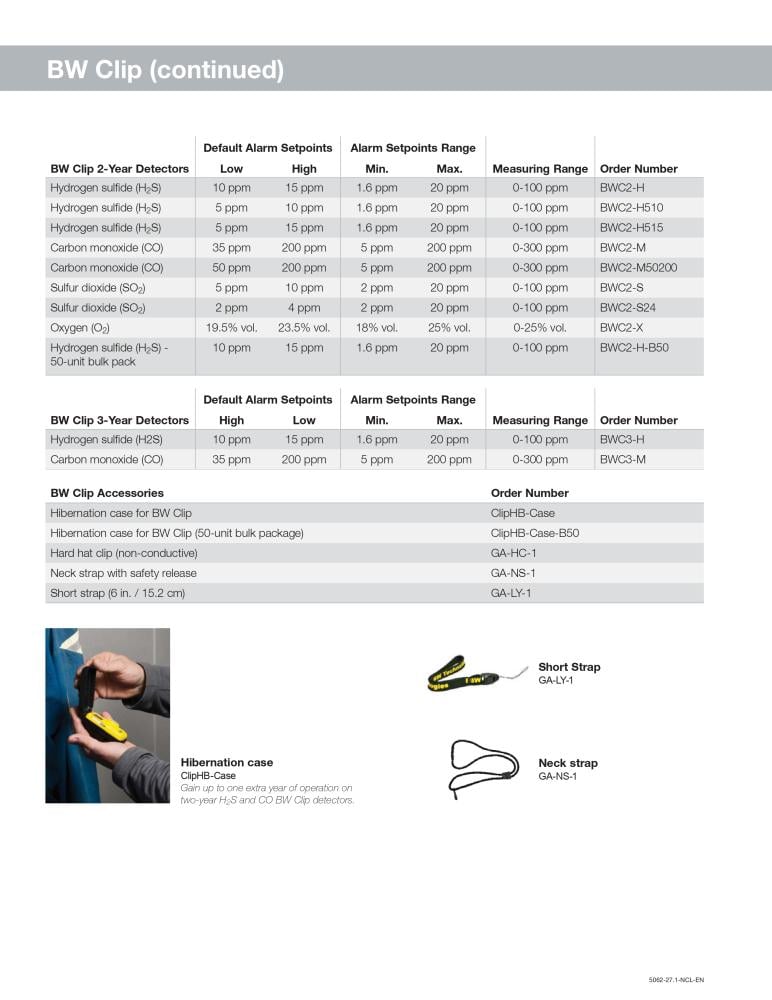

The BW Clip single-gas detector is your everyday companion for hazardous environments. It operates up to three years maintenance-free: Just turn on the device and it runs continuously — no need for calibration, sensor replacement, battery replacement or battery charging. That means great reliability and no downtime. Plus, with the two-year BW Clip for H2S or CO, you can put the device in a hibernation case when you’re not using it for a week or more — and extend its life by that period of time. Compatible with both the MicroDock II and the IntelliDoX instrument management systems, the BW Clip is engineered to the highest standards of quality and reliability, keeping you safe
and compliant.
Standard Package Contents

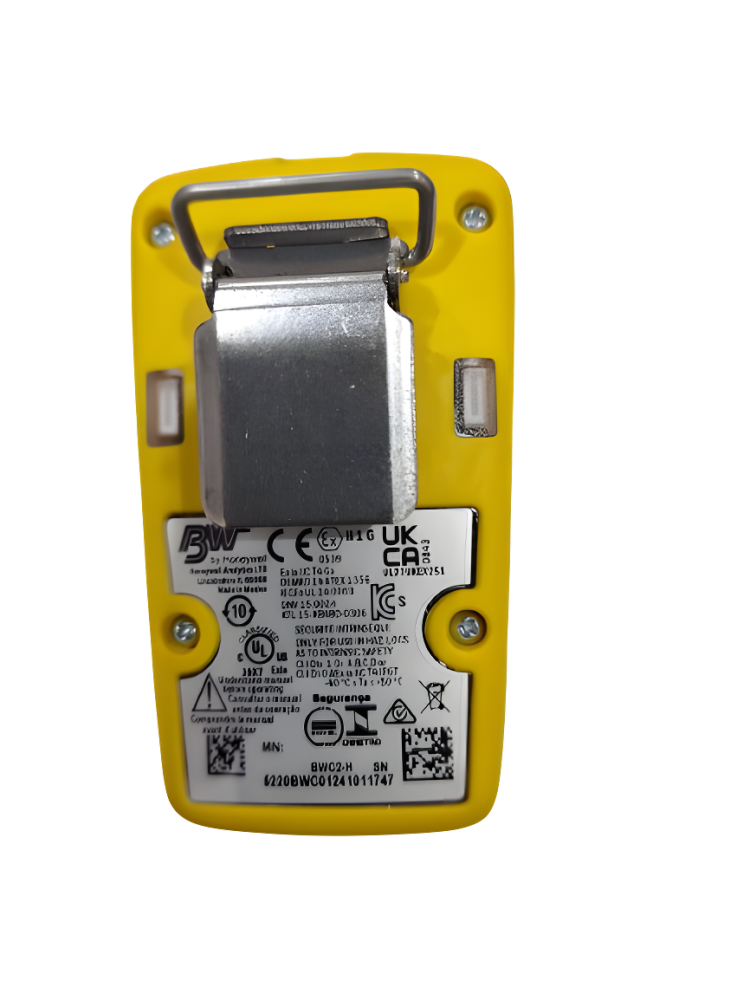

• Detector complete with specified sensor, stainless steel alligator clip and concussion-proof housing
• Test cap
• Instructions
General Specifications
---------------------------------------------------------------------------------------------------
Size 1.1 x 2.0 x 3.4 in. / 2.8 x 5.0 x 8.6 cm
------------------------------------------------------------------------------------------------
Weight 3.2 oz. / 92 g
------------------------------------------------------------------------------------------------
Typical battery life Two years (H2S, CO, SO2 or O2) or three years (H2S or CO)
----------------------------------------------------------------------------------------------
Certifi cations and Class I, Div. 1, Gr. A, B, C, D
approvals Class I, Zone 0, Group IIC
ATEX: CE 0539 II 1G
Ex ia IIC T4 Ga IP66/67
DEMKO 14 ATEX 1356
CE European Conformity
EC EC Declaration of Conformity
www.honeywellanalytics.com
IECEx: Ex ia IIC T4 Ga IP66/67
IECEx UL 14.0063
----------------------------------------------------------------------------------------
Warranty Two or three years from activation (given normal operation),
plus one year shelf life (6 months for O2 model)
Up to three years from activation for two-year H2S and CO detectors
when used with the hibernation feature , limited by 24 months of detector operation
---------------------------------------------------------------------------------------------
